iCircuit for Windows: A Pocket-Sized Electronics Lab That Actually Works

One-line pitch: iCircuit turns your Windows PC into a no-fuss, drag-and-drop electronics workbench for learning, teaching, and prototyping circuits — without blowing a single fuse.

Developer / Publisher: Krueger Systems Inc., a small studio known for bringing intuitive circuit simulation to touch-first devices.

Key features that stand out:

• Real‑time simulation with animated voltage and current flow — you see exactly what happens the moment you change a component.
• A rich built‑in component library covering basic resistors, op-amps, 555 timers, logic gates, and even Arduino‑friendly parts.
• Virtual measurement tools (oscilloscope, logic analyzer, signal generator) that behave like real benchtop gear.
• Seamless drag‑and‑drop wiring: just tap or click to connect, and the app handles all the netlist heavy lifting.

Who it's for: Electronics students brushing up on theory, hobbyists tinkering with new project ideas, and educators who need a clean, battery‑friendly tool for classroom demos. If you've ever fried a $5 op‑amp by accident, this app might save your wallet.

Why I Keep Coming Back to This App

Let me paint a picture: it's 11 p.m., you've got a half‑baked idea for a light‑sensing alarm, and your actual breadboard is buried under a pile of jumper wires that look like a spider's nest. Instead of hunting for a resistor, you open iCircuit. Two minutes later, you've got a working simulation with a blinking LED and a photoresistor curve. That's the kind of relief this app delivers — it removes the friction between “what if” and “I see it working.”

Unlike heavy‑duty tools like Multisim or LTspice, iCircuit feels like a sketchpad. You don't need a degree in cryptic menu navigation. Everything happens in real‑time, and the app never makes you feel stupid for making a connection wrong. It just shows you the red wire turning blue when current flows — and that's oddly satisfying.

Live Simulation: The Magic of Seeing Current Dance

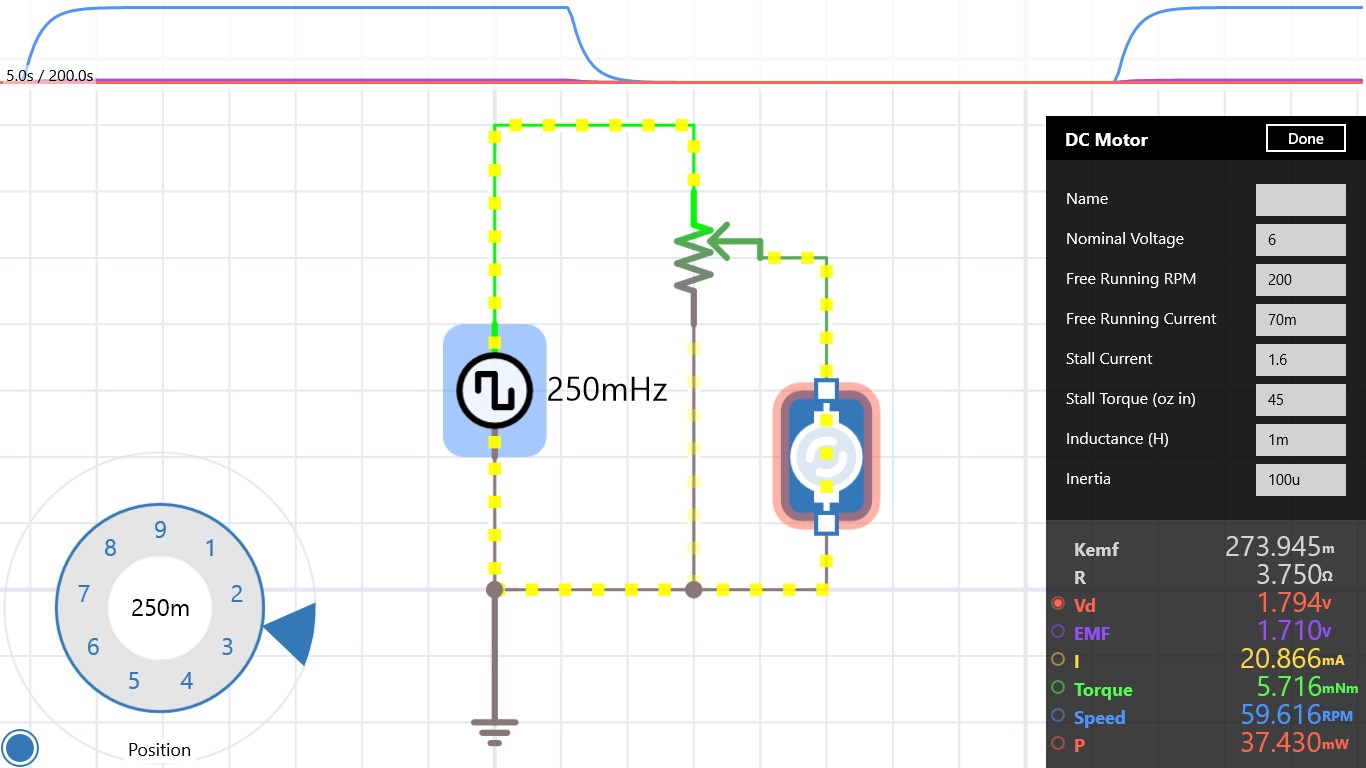

The heart of iCircuit is its live simulation engine. Drop a battery, a resistor, and an LED. Connect them with a few clicks. Immediately, you'll see animated dots traveling along the wires — that's your simulated current. A digital multimeter icon shows the voltage at any node if you hover over it. Change the resistor value, and the dot speed adjusts instantly. It's not just educational; it's almost meditative to watch.

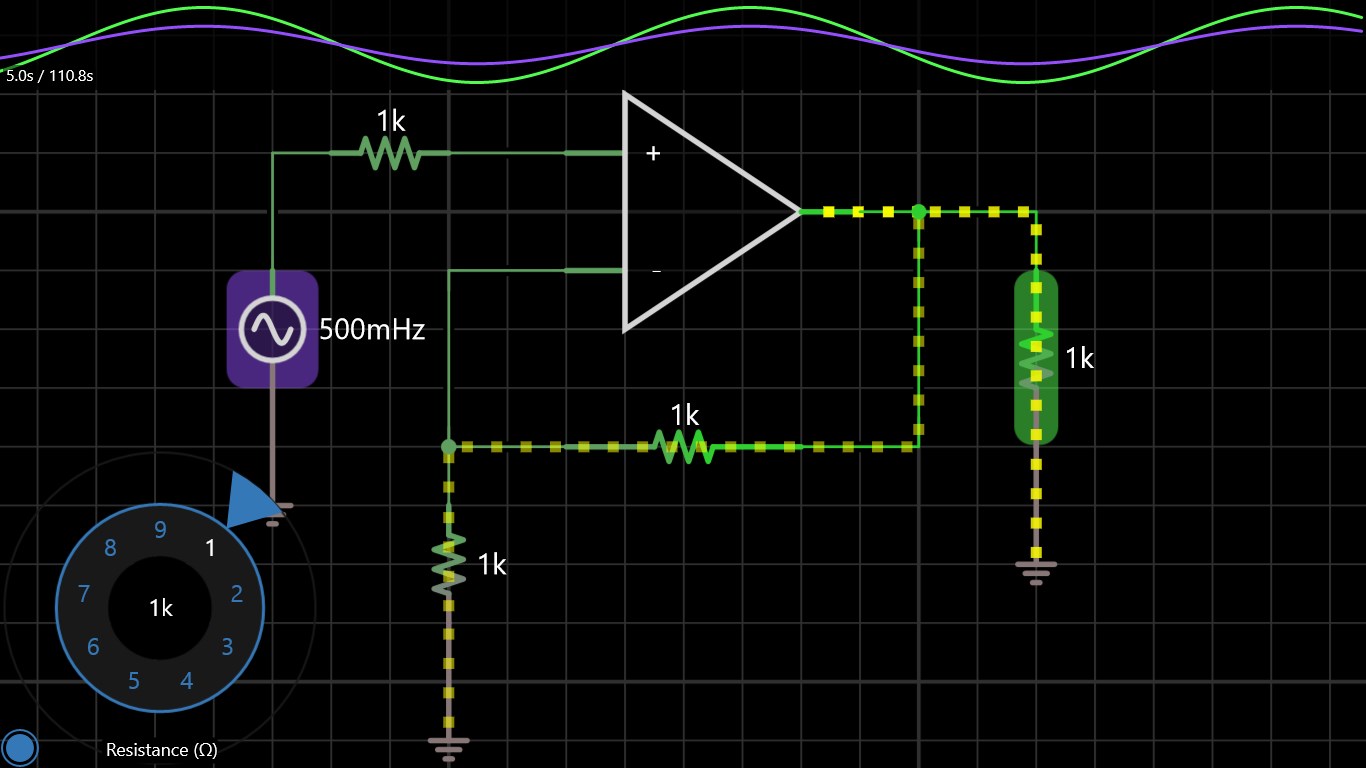

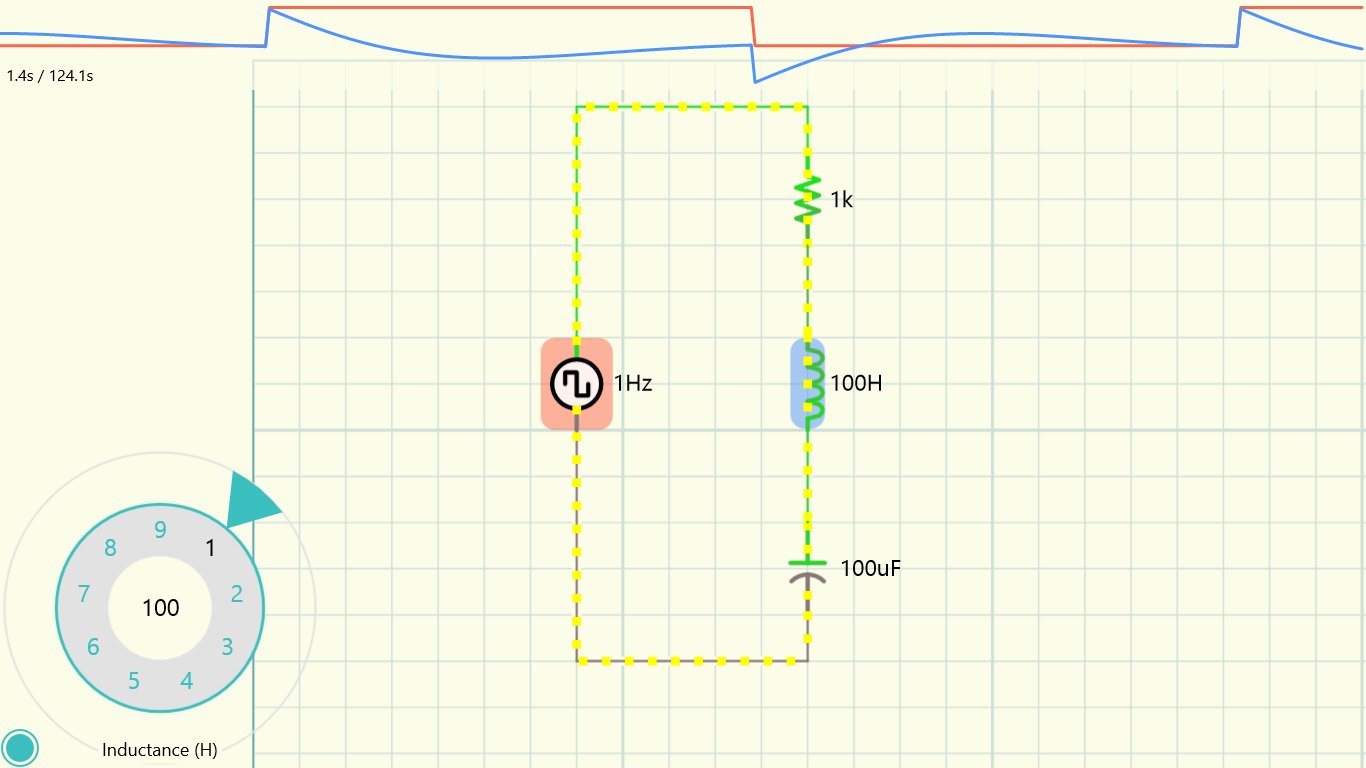

This real‑time feedback is what sets it apart from batch simulators. You can tweak a potentiometer slider and watch the output waveform on a virtual oscilloscope update in the same breath. Want to see how a capacitor charges? Just click the switch and the voltage graph rises smoothly before your eyes. It's like having a physics lab that never runs out of components.

Virtual Instruments That Won't Break Your Budget

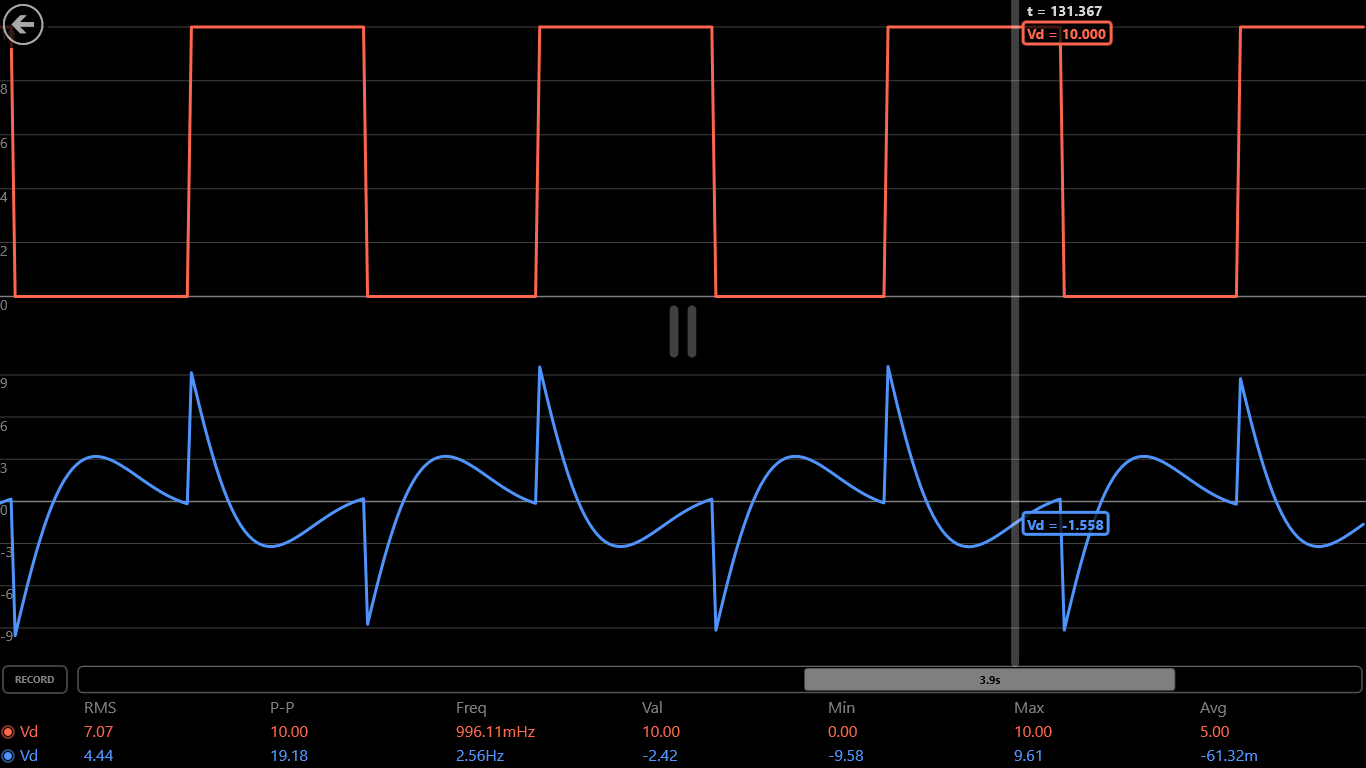

Inside the app, you get four key virtual instruments: a dual‑channel oscilloscope, a logic analyzer, a signal generator, and a Bode plotter. They're not complete substitutes for a Rigol scope, but for learning and quick checks they're genuinely capable. The oscilloscope, for instance, lets you adjust time/div and voltage/div, trigger on rising or falling edges, and even save screenshots of the waveform.

What I love most is the logic analyzer: hook it up to a digital circuit with a 74HC00 NAND gate, and it will show you the bitstream in clear square‑wave style. For anyone trying to understand timing diagrams, this tool alone is worth the download. And because it's all software, you can freeze the simulation, zoom into a glitch, and annotate it — try doing that with a real scope.

User Experience: Smooth, But Not Perfect

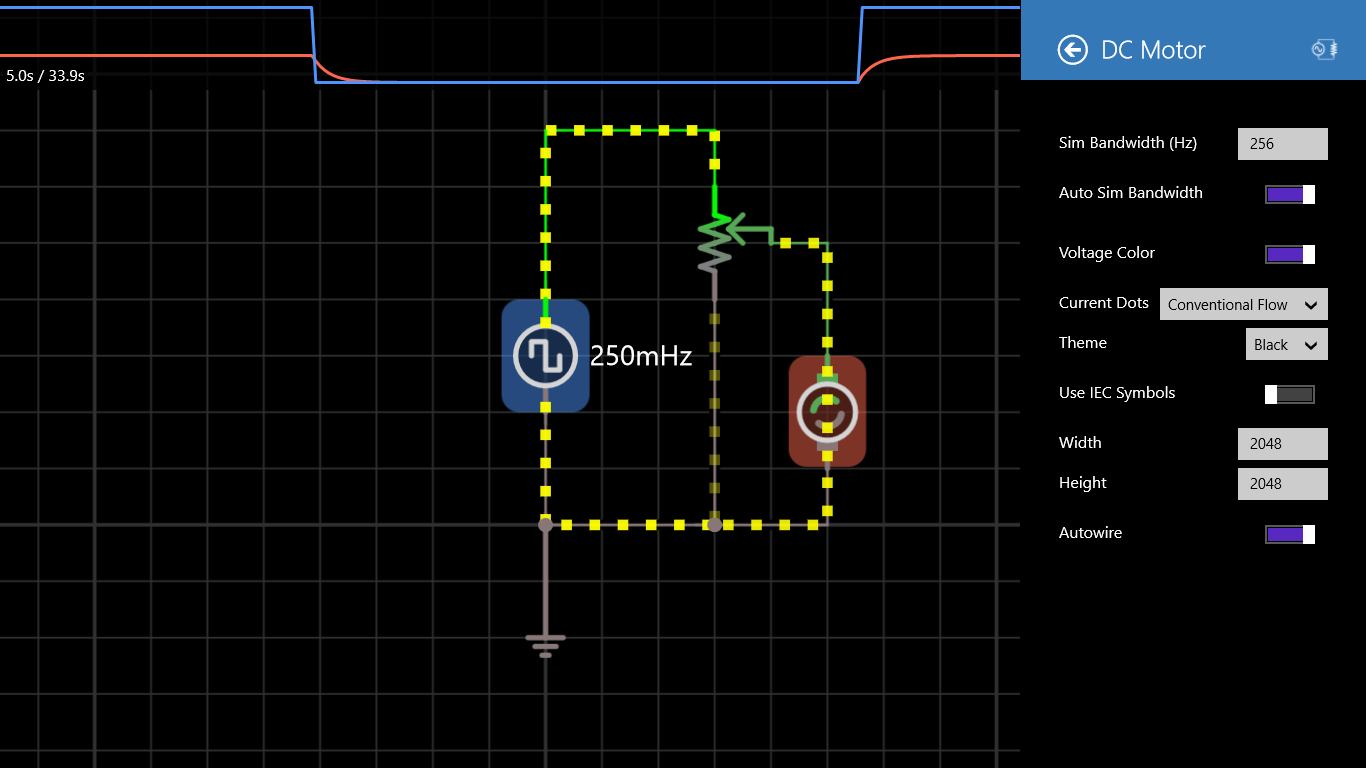

The interface is clean and prefers a dark theme by default (a nice touch for late‑night tinkering). Dragging components from the sidebar feels responsive, and the workspace auto‑snaps to a grid — no more crooked wires. I tested it on a Surface Pro 4 with a Core i5 and it ran at a solid 60 fps for circuits with up to about 30 components. Bigger designs with lots of op‑amp sub‑circuits started to show a slight lag, but nothing that broke the flow.

The learning curve is gentle. If you've ever built a circuit with a breadboard, you'll grasp the drag‑and‑drop in under two minutes. The only small complaint: the component search isn't fuzzy enough. Typing “555” brings up the timer, but “NE555” doesn't always match. A minor quibble, but worth noting for power users.

What Makes It Different from Other Utility Tools

Most circuit simulators fall into two camps: either they're as complex as a spaceship cockpit (Multisim, Proteus) or they're too toy‑like (Falstad's, which works only in a browser). iCircuit sits in the sweet spot. Its unique strengths are touch‑friendly design (it was originally crafted for tablets, so the Windows version inherits that natural finger‑flick interaction) and instant feedback — you don't need to press a “run” button; simulation is always on.

Another hidden gem: the Arduino-like parts in the library. You can place a virtual Arduino Uno, write a simple sketch (the app includes a trimmed‑down editor), and simulate how the board interacts with external LEDs and sensors. It won't replace a real Arduino, but for debugging logic before soldering, it's a lifesaver.

Final Verdict: Who Should Click “Install”?

iCircuit for Windows is a solid 4 out of 5 stars — not perfect, but exceptionally practical. I'd recommend it without hesitation to:

• Students who need to visualize Ohm's law or AC/DC circuits.
• Makers prototyping simple embedded projects before touching a soldering iron.
• Teachers looking for a distraction‑free demo tool that doesn't require a projector (just cast your screen).

Usage advice: Don't try to simulate complex multi‑board systems — the engine slows down around 50+ components. Use it as a thinking aid, not a production‑grade simulator. And if you're on a tablet or a laptop with a touchscreen, the experience is noticeably better with a stylus or your finger.

It's available on the Microsoft Store for a one‑time fee (around $9.99 at the time of writing, though discounts pop up). Considering you'd spend that much on a pack of transistors and a few LEDs, it's a bargain for the brain‑saving it offers.

FAQ

How do I start a new circuit simulation in iCircuit?

Open iCircuit and tap the '+' icon on the home screen to create a new project. Drag components from the library (like resistors or batteries) onto the canvas, connect them by tapping pins, and press the play button to run the simulation instantly.

What are the basic steps to add and connect components in the schematic editor?

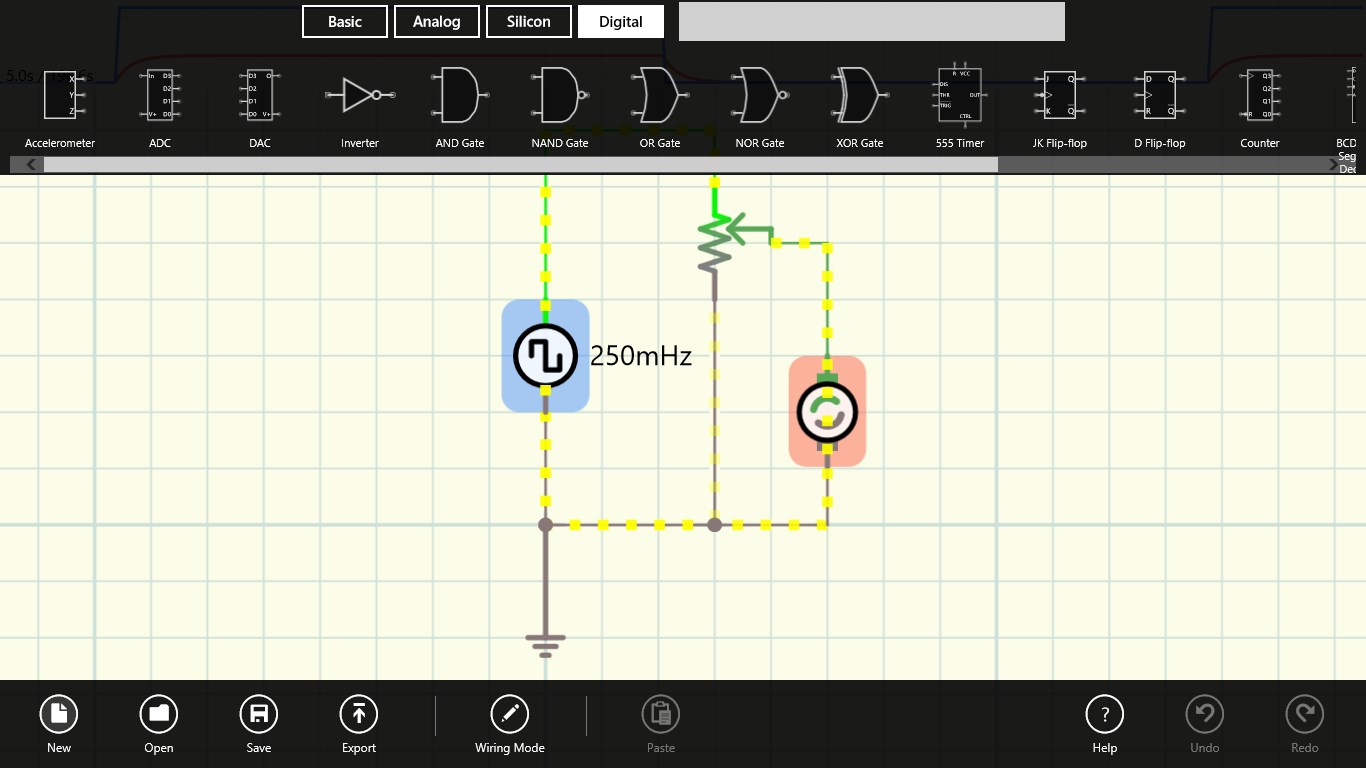

Tap the component icon in the toolbar, select from the list (e.g., resistor, switch), and place it on the grid. To connect, tap the first pin, then tap the second pin - a wire will appear automatically. You can also drag between pins.

Can I save and export my circuit designs for later use or sharing?

Yes, tap the file icon to save your project locally. To export, go to the menu (three dots) and select 'Export'. Choose PDF for schematics or .icrcuit file for sharing with other iCircuit users via email or cloud.

How do I use the built-in multimeter to measure voltage and current in real time?

Tap the multimeter icon in the toolbar, then tap any wire or component pin to probe. The meter instantly displays voltage or current. Switch between DC/AC or range by tapping the meter display. No need to stop simulation.

What is the oscilloscope and how can I view multiple signals simultaneously?

Tap the oscilloscope icon, then tap on wires to add signals. The scope shows waveforms over time. Use pinch-to-zoom to adjust time scale, and tap the stacked/unstacked button to compare signals side-by-side or overlapped.

Does iCircuit support both analog and digital components like MOSFETs and logic gates?

Yes, iCircuit handles both. You can mix analog parts (resistors, op-amps, transistors) with digital gates (AND, NOR, flip-flops). The simulation engine automatically adjusts - no manual mode switching required.
