UFS Explorer RAID Recovery

Introducing UFS Explorer RAID Recovery: A Data Savior for Complex Failures

UFS Explorer RAID Recovery for Windows is a specialized data recovery tool designed to resurrect lost data from failed or damaged RAID arrays, spanning simple striped sets to complex multi-disk configurations. Developed by Bohdan Shulha, SysDev Laboratories, and published by SysDev Laboratories UK Limited, this application focuses on reconstructing RAID structures when controllers fail, disks drop out, or metadata gets corrupted. Key highlights include automatic detection of RAID parameters (block size, parity rotation, disk order), support for dozens of file systems (NTFS, ext4, XFS, ZFS, Btrfs, etc.), the ability to build virtual RAID assemblies without needing the original controller, and deep disk imaging for failing drives. The primary audience spans IT administrators, system integrators, forensic investigators, and anyone managing NAS devices or enterprise storage who faces a RAID disaster.

A Deep Dive Into the Data Recovery Workhorse

When the RAID Cries for Help – First Impressions

Picture this: your office NAS, a trusty 8-drive RAID 6, starts clicking one morning. Panic sets in – customer files, years of design work, irreplaceable databases. Generic recovery tools choke on the proprietary RAID stripe. That's where UFS Explorer RAID Recovery steps in, not with grand promises but with a methodical, almost surgical approach. It doesn't just scan; it tries to understand how your array was originally built. From the moment you launch the app, you feel like a detective handed the right tools to piece together a puzzle of scattered disks.

Core Feature 1: Intelligent RAID Reconstruction – Seeing Through the Rubble

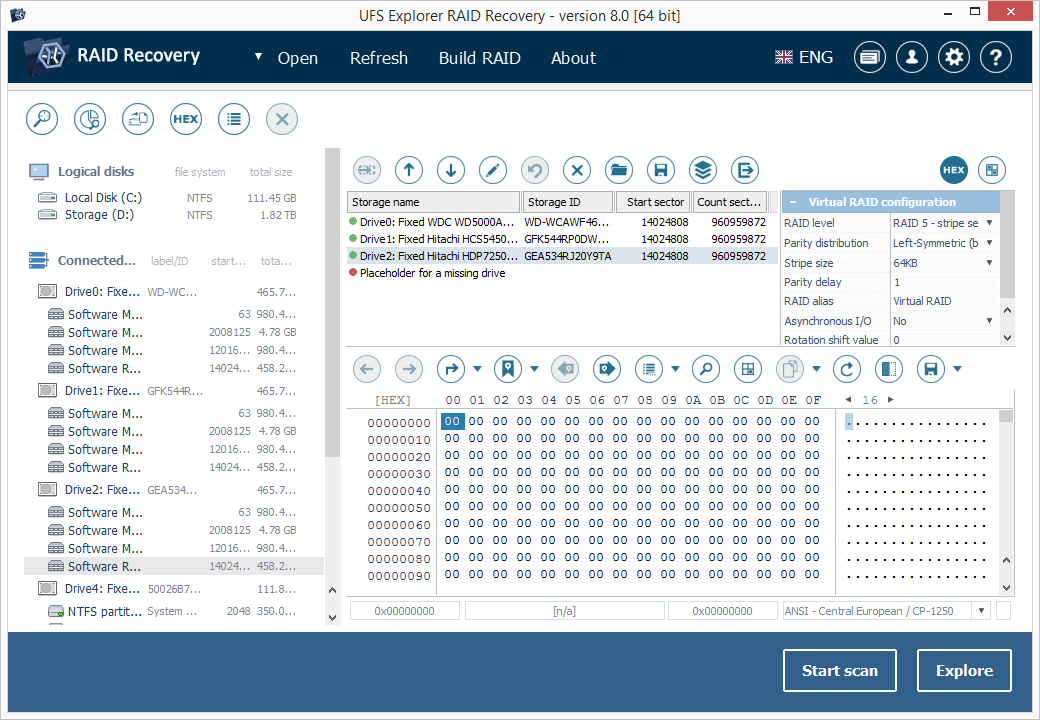

The standout feature here is the automatic RAID parameter detection. Instead of demanding you manually input stripe size, parity rotation or disk order (which you probably don't remember), the software analyzes the raw data on each member drive and suggests a likely configuration. It supports RAID 0, 1, 5, 6, 10, 50, 60, JBOD, and even nested or custom hybrids. If the metadata is partially overwritten, you can tweak parameters in real time using a built-in hex viewer. For those terrifying “lost controller” scenarios where you have bare drives from a dead DAS or SAN, the tool can build a virtual RAID from disk images without needing the original hardware. This alone saves hours of guesswork and avoids further data damage from trial-and-error rebuilds.

Core Feature 2: Universal File System Support – No Disk Left Behind

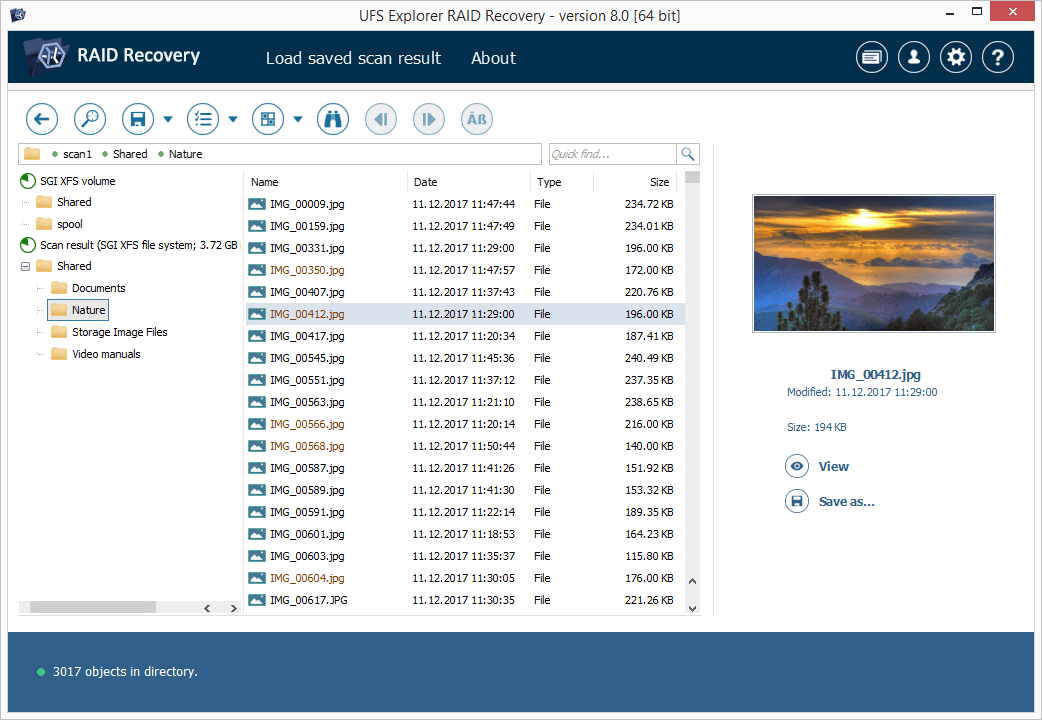

Many RAID recovery tools only handle Windows-native file systems (NTFS/FAT). UFS Explorer swallows a much bigger menu: ext2/3/4, XFS, ReiserFS, Btrfs, ZFS, HFS+, APFS, UFS, and even enterprise-grade ones like VMFS (VMware). If you're recovering data from a Synology, QNAP, or TrueNAS box, this matters – those devices often use ext4 or Btrfs on Linux-based RAID. The tool reads the actual file system structures, folder trees, and long filenames, presenting them in a familiar tree view. It also handles deleted or damaged MFT records, RAID parity mismatches, and partial disk failures where only some drives are salvageable. You can preview files (photos, documents, videos) before committing to a full recovery, which is a welcome sanity check.

User Experience: From Setup to Success

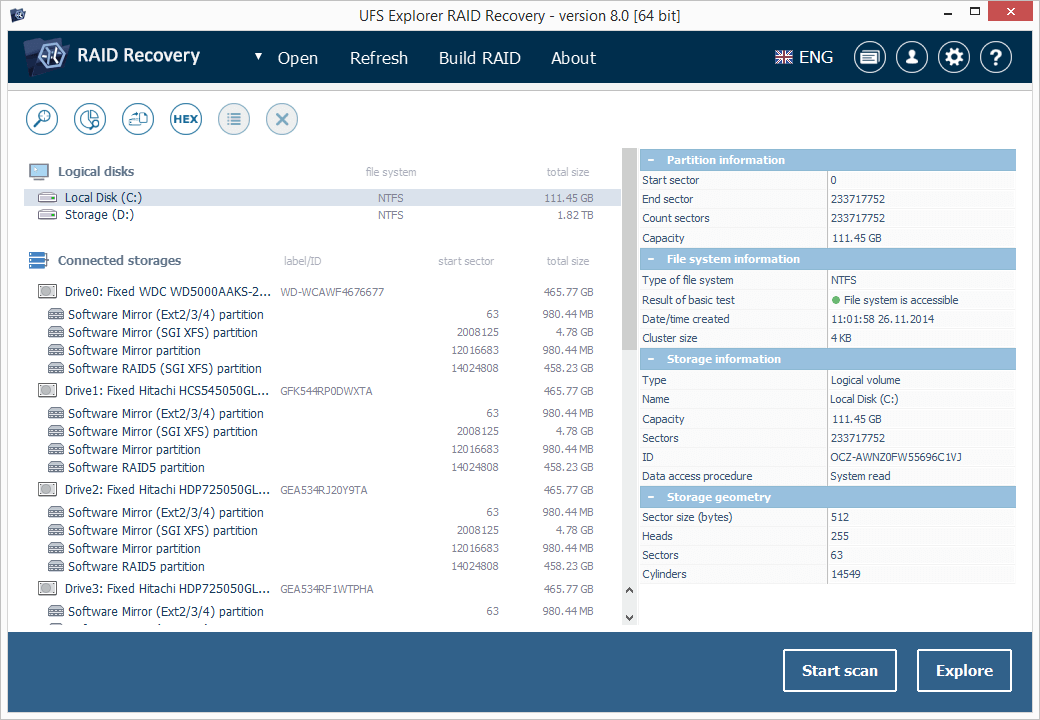

Interface design is functional rather than flashy – think of a well-organized workshop bench. The left panel lists detected disks and RAID groups, the center shows file browsing, and the right side displays details and logs. It's not drop-dead gorgeous, but it's logically arranged and never wastes your time with unnecessary animations. Performance on modern hardware is decent: scanning a 4-drive RAID 5 (4TB each) takes roughly 30–60 minutes, depending on disk health. The learning curve is moderate; if you already understand RAID levels, you'll feel at home within an hour. Complete beginners might struggle with terms like “parity rotation direction” or “block offset,” but the built-in wizard and detailed tooltips help. I'd recommend reading the manual once before a real crisis – or at least running through a test recovery on a dummy array.

What Makes It Stand Out From the Crowd?

Comparing UFS Explorer to competitors like R-Studio, ReclaiMe, or DMDE, its strongest edge is the depth of RAID intelligence. Most rivals require you to manually supply RAID parameters or rely on a “brute force” scan that may fail with unusual stripe sizes. UFS Explorer's automatic detection not only works on standard PC RAID controllers but also on hardware RAID from LSI, Adaptec, HP Smart Array, Dell PERC, and software RAID from MDADM (Linux) and Storage Spaces (Windows). It also handles mysterious cases like RAID 5 with left-asynchronous parity, which many tools misidentify. Additionally, the built-in disk imaging function (working with bad sectors via custom timeout) gives you a stable copy to work from, preventing further damage to failing drives – a feature often reserved for forensic-grade software. This combination of broad file system support and controller-agnostic reconstruction makes it a go-to for professionals who can't afford guesswork.

The Verdict: A Solid Recommendation

UFS Explorer RAID Recovery isn't a magic wand – it can't recover 100% of data if all disks are physically dead – but for typical RAID failures (dropped drives, corrupted metadata, controller death), it's among the most reliable tools I've tested. I recommend it to IT admins, MSPs, and data recovery labs as a primary utility. For home users with a single NAS failure, it might feel overkill price-wise (a single license costs around $80), but the alternative – professional recovery service bills of $500–$2000 – makes it a worthwhile investment. Pair it with a good disk cloning tool (like its own imaging) and patience, and you'll avoid the heartbreak of lost RAID data. Just remember: treat your drives gently during recovery – no yanking cables, no forcing online reboots. This tool gives you a second chance, but it can't resurrect a disk that's already been shattered.

FAQ

What is UFS Explorer RAID Recovery and who is it for?

UFS Explorer RAID Recovery is professional forensic software for reconstructing and recovering data from complex RAID systems, nested arrays, and proprietary storage technologies. It is designed for IT specialists, data recovery professionals, and advanced home users dealing with failed or corrupted storage.

How do I get started with recovering data from a RAID array?

Launch the software and go to File > Open Disk. If the RAID is detected automatically, select the array and start scanning. For manual setup, use the RAID Builder under Tools > RAID Constructor. Define parameters like stripe size and parity order to assemble the virtual RAID.

Can I recover data from a single hard drive, or is it only for RAID systems?

Yes, you can recover data from a single drive. While the software excels at RAID reconstruction, it also supports direct imaging and file-level recovery for standalone drives. Go to File > Open Disk, select the physical drive, and choose a scan mode to begin.

How does the software automatically detect RAID configurations?

It scans on-disk metadata from mdadm, LDM, or other RAID superblocks. When you open a disk or disk set, if metadata is intact, the software will propose the correct assembly. Just confirm and proceed to scan—no manual parameters needed.

What should I do if the RAID metadata is corrupted or missing?

Use the manual RAID builder at Tools > RAID Constructor. Here you can specify stripe size, parity rotation, delay, and other parameters. This virtual reconstruction works even without metadata by analyzing data patterns. Save the virtual array, then scan it like a real drive.

How can I image a failing hard drive with bad sectors?

Open the drive via File > Open Disk, then right-click and select 'Create Disk Image'. In the imager dialog, set read timeouts and block size under I/O Parameters. Enable Bad Block Maps to skip damaged areas. The software will prioritize healthy data while logging errors.
