WiFi Analyzer

First Impressions: A Wi-Fi Detective in Your Pocket

Imagine you're sitting in a coffee shop, frustrated by a spinning loading icon, or setting up a new router at home and wondering why your signal drops in the bedroom. Meet WiFi Analyzer for Windows, a free and lightweight utility by developer Matt Hafner that turns your PC into a network sleuth. It doesn't promise to boost your speed magically, but it gives you the visual data to understand exactly what's happening in the air around you. Think of it as a spectrum analyzer for your home network—minus the intimidating lab equipment.

Who Made This and Who Needs It?

Developed and published solo by Matt Hafner, this app targets a broad audience: home users tired of buffering, IT pros on the go, and curious enthusiasts who just want to peek behind the Wi-Fi curtain. It's especially useful for anyone troubleshooting interference, picking the best channel for a router, or checking signal strength in different rooms.

Under the Hood: Core Features (Key Highlights)

• Real-time Signal Graph: See signal strength (in dBm) for every nearby network plotted over time.
• Channel Overlap Map: Visualize which 2.4GHz and 5GHz channels are crowded and which are clear.
• Detailed Network Info: Instantly check security type (WPA2, WPA3), band, channel width, and MAC address.
• Export Capability: Save your scan data as a CSV or image for later analysis.

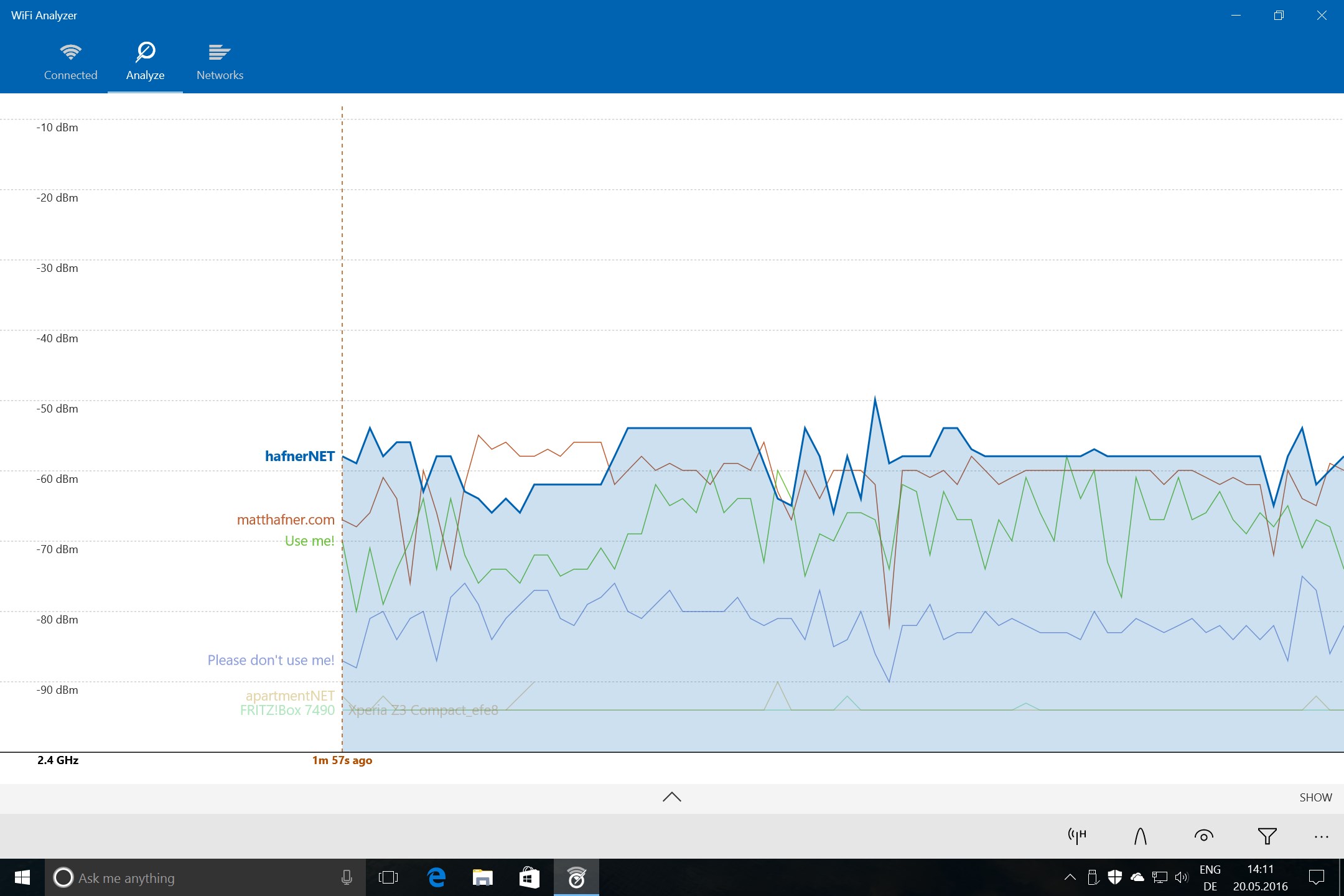

The Live Graph: Where Signal Meets Time

The star of the show is the live signal strength graph. It plots multiple Wi-Fi networks as colored lines that dance across a two‑axis chart (time on the horizontal, signal in dBm on the vertical). You can watch your own connection dip when someone microwaves popcorn or a neighbor starts a Netflix binge. The graph updates every second, making it perfect for walking around your house to find dead zones. Unlike some competitors that only show a snapshot, this app records the last 60 seconds so you can spot patterns—like a signal that drops every five minutes (hello, Bluetooth interference).

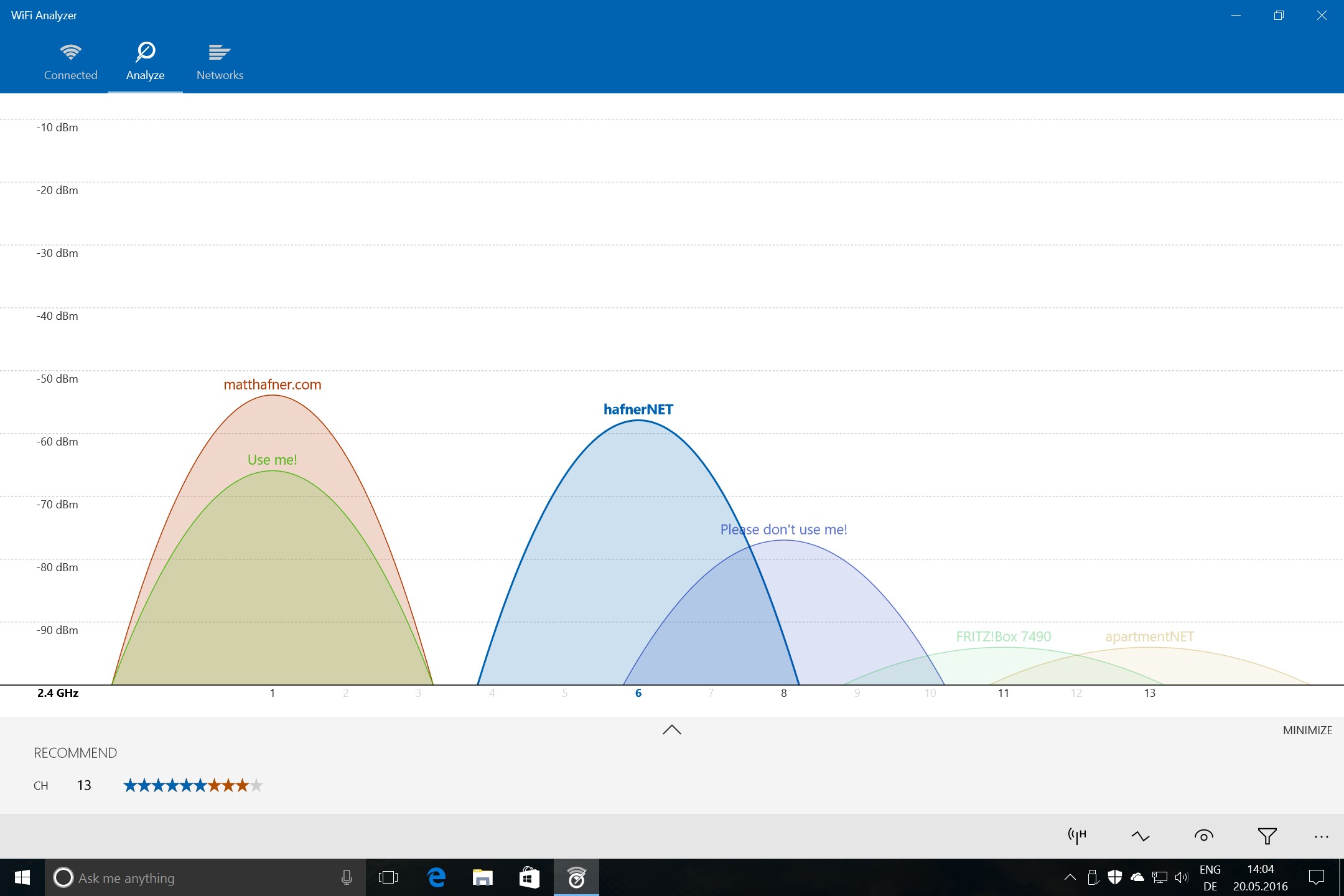

Channel Analyzer: Avoiding the Traffic Jam

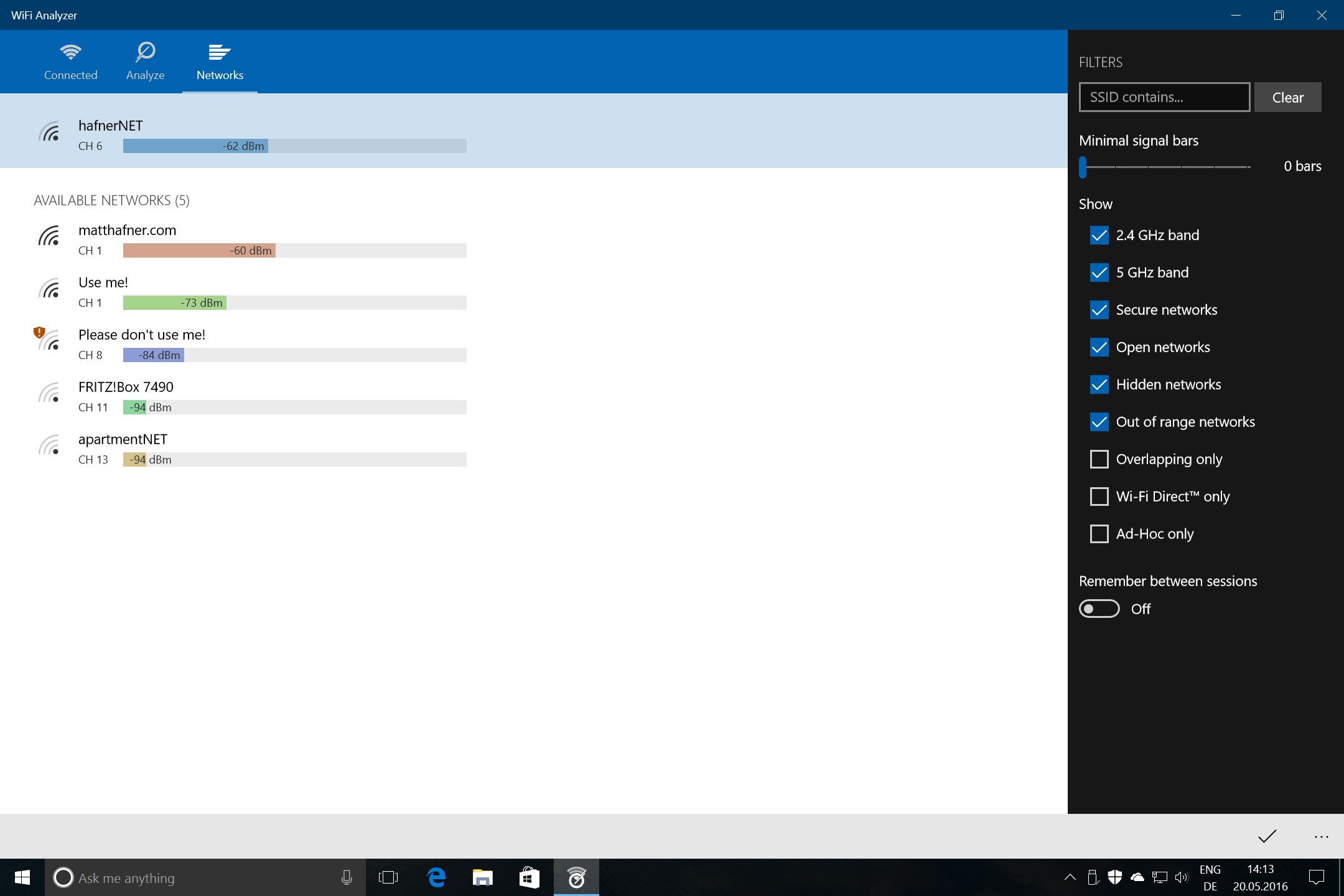

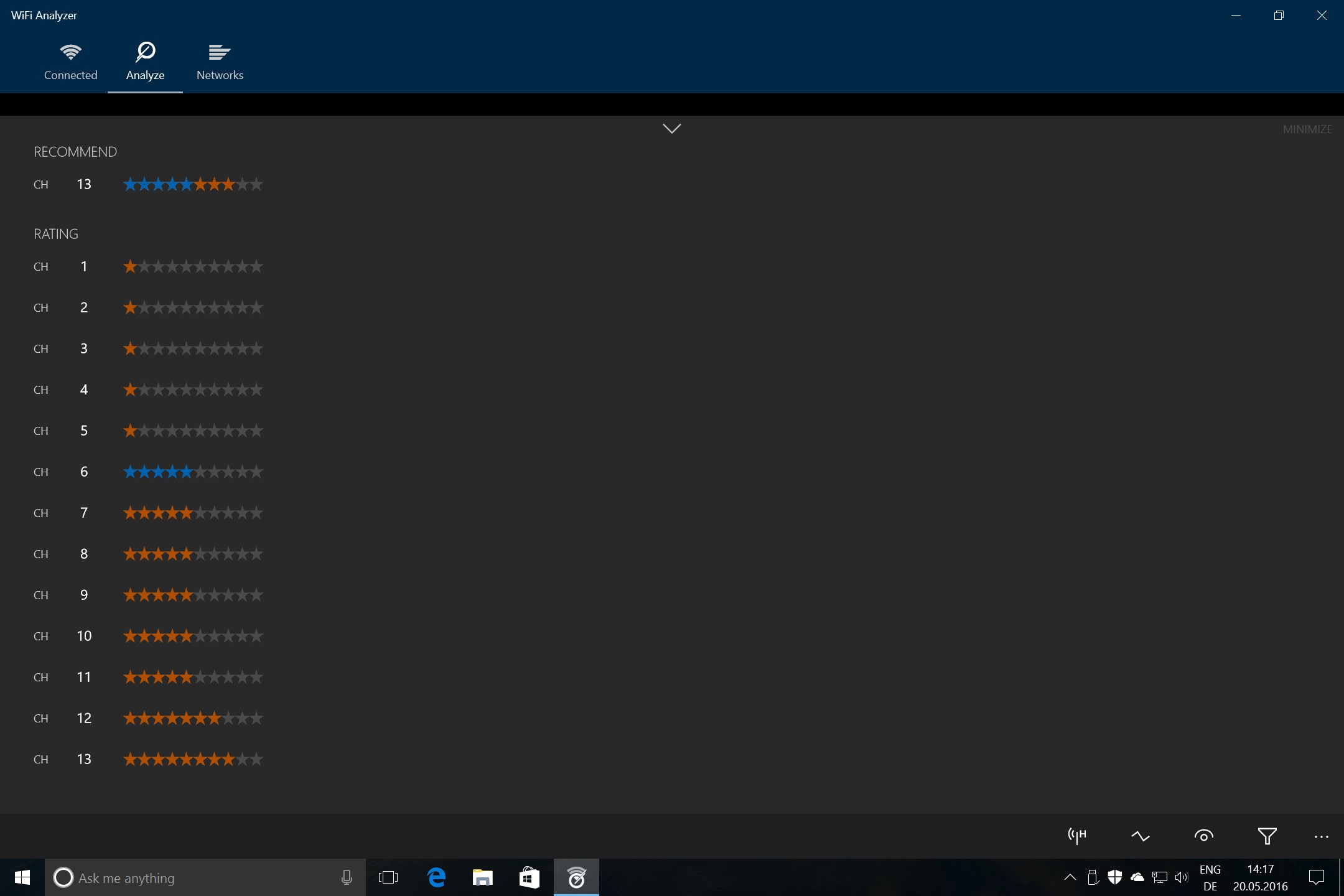

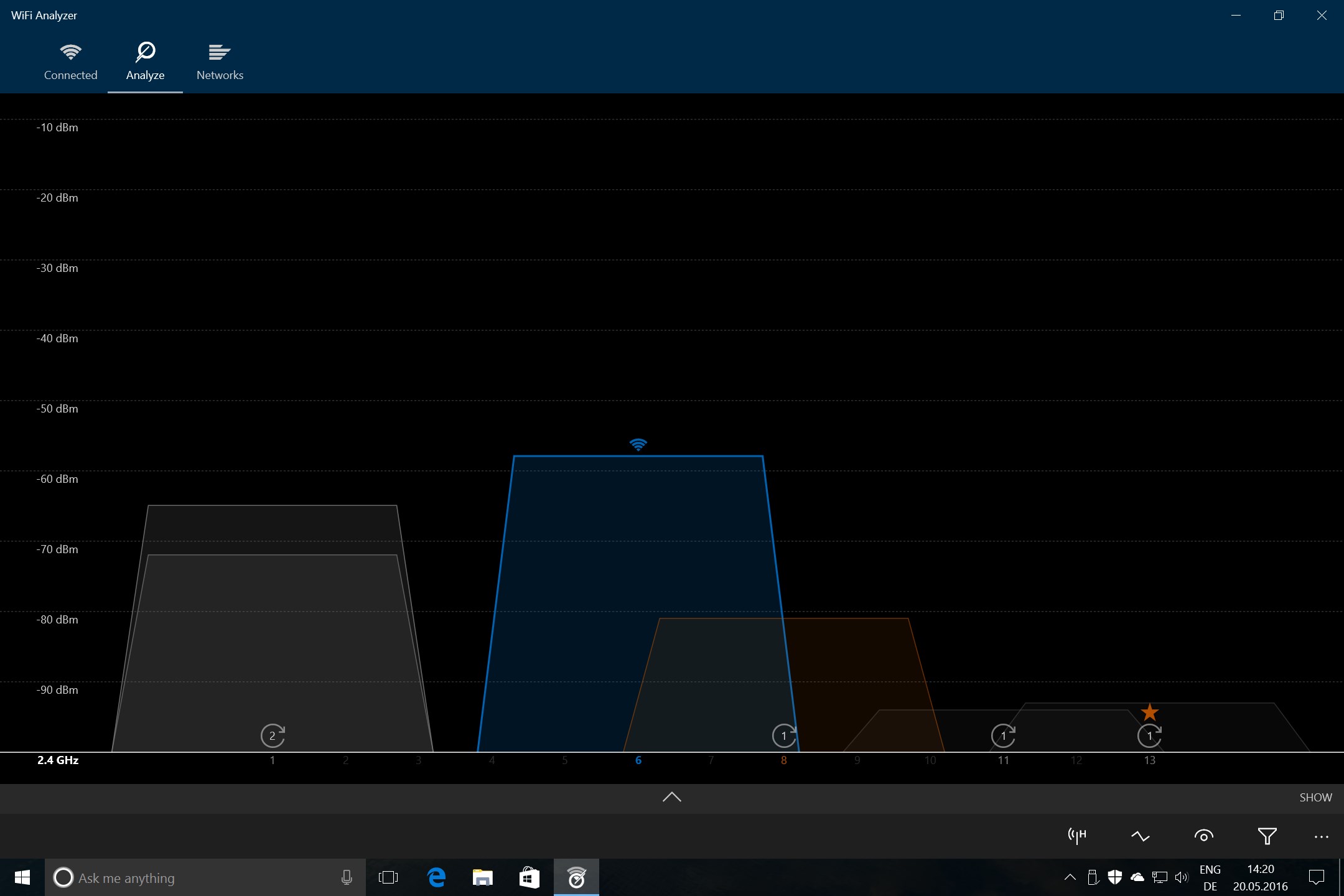

Another standout is the channel chart. It displays all detected networks sorted by channel, with overlapping networks stacked for easy comparison. On the 2.4 GHz band, where channels 1, 6, and 11 are the only non‑overlapping ones, you'll immediately see if three networks are fighting on channel 6. The app even suggests the best channel based on current congestion—this is the feature I find most useful for router placement. Combined with the "Access Point List" view that shows signal strength per AP, you can decide exactly which channel your router should use without guesswork.

User Experience: Clean, Fast, and Approachable

WiFi Analyzer Windows edition uses a simple, modern interface that fits right into the Microsoft Store aesthetic. No cluttered menus, no hidden settings. The main window has three tabs: Graph, Channels, and Details. Each tab loads in under a second, and the scanning starts automatically the moment you open the app. Learning curve? Nearly zero. I handed it to my neighbour (who thinks "IP address" is a typo) and she was reading the graph within a minute. The only minor hiccup: the app doesn't offer a dark mode, but that's a nitpick, not a dealbreaker.

What Sets It Apart From Other Wi-Fi Tools?

Compared to heavyweights like NetSpot or Acrylic Wi-Fi Home, this app prioritizes simplicity and speed. Others often bury features behind paywalls or overwhelm you with technical jargon. Matt Hafner's app is completely free, contains no ads, and respects your privacy—it doesn't even ask for network control, only location permission (required by Windows for Wi-Fi scanning). The unique advantage is the real-time graph combined with channel suggestion. Most free alternatives either show a static list or a graph that pauses when you switch tabs. Here, the graph keeps running, so you can watch interference as it happens. It's also incredibly lightweight: the install size is under 5 MB and it runs on any Windows 10/11 device without hogging resources.

Final Verdict: Who Should Download It (and Who Should Skip)

I'd recommend WiFi Analyzer wholeheartedly to anyone who's ever yelled at their router or stood on a chair holding a laptop for better reception. It's perfect for quick diagnostics, setting up a new access point, or showing off at a tech meetup. However, if you need advanced features like heat mapping, signal coverage prediction, or professional reporting, you'll want a paid tool like Ekahau or NetSpot Pro. For 95% of home and small‑office users, this app does everything you need, and it does it with zero friction. Get it from the Microsoft Store—it's free, it's honest, and it just works.

FAQ

How do I start analyzing my Wi-Fi network with WiFi Analyzer?

Open the app and grant location permission if prompted. The main screen will display a real-time graph of nearby Wi-Fi networks. Tap any network to view its signal strength and channel. No setup required—just launch and look around. Path: App launch > Main graph.

What does the signal strength meter show and how can I use it to find a better router spot?

The meter displays received signal strength in dBm. Walk around your space while watching the meter; a higher (less negative) number means stronger signal. Move your router until you find the spot with the best coverage. Path: Main screen > Signal strength indicator.

How can I find the best Wi-Fi channel for my router to reduce interference?

Go to the channel graph view. It shows each channel's usage and overlapping networks. Look for the channel with the fewest and weakest overlapping networks. Select that channel in your router's settings. Path: Menu > Channel graph > Analyze channels.

Can I see both SSID and BSSID on the graph at the same time?

Yes, this is a PRO feature. After upgrading, open graph settings and enable both 'Show SSID' and 'Show BSSID'. The graph will then display network names and their unique MAC addresses for easier identification. Path: Menu > Settings > Graph > Show SSID / Show BSSID.

How do I prevent my screen from turning off while analyzing networks?

This is a PRO feature. Enable 'Prevent screen timeout' in the app's settings. Once activated, your device's screen will stay on as long as the app is in the foreground, letting you monitor signal strength continuously. Path: Settings > Prevent screen timeout > Toggle on.

What information do I get when I tap a network in the details view?

The network details screen (PRO feature) shows SSID, BSSID, signal strength, channel, security type (e.g., WPA2), and the network's vendor. This helps you identify unknown networks or check security settings. Path: Tap any network > Network details (PRO).
