Windows Configuration Designer

From Chaos to Order: The Provisioning Magic

Imagine walking into a room with 50 identical laptops, all fresh from the box, blinking at you with their "Out of Box Experience" screens. You have to join them to your company's domain, install specific apps, configure Wi-Fi, set power policies, and maybe even apply a custom wallpaper. Without a tool like Windows Configuration Designer (WCD), you'd be clicking through each machine for hours, drowning in repetitive tedium. This is where WCD steps in—a quiet, unassuming app from Microsoft that turns that chaos into a single configuration file, ready to be applied with a USB stick or a network share. It's not flashy, but for anyone managing Windows devices, it's a genuine game-changer.

What Exactly Is Windows Configuration Designer?

Developed and published by Microsoft Corporation, Windows Configuration Designer is a free utility that lets you create "provisioning packages"—essentially ZIP files containing a set of instructions for Windows. Drop these packages onto a device, and it instantly applies your settings, apps, and policies without manual intervention. Think of it as a chef's prep list: you write down everything once, and then every cook (or PC) follows it to perfection.

Key highlights include:

• Graphical provisioning package creation – No XML editing required; a wizard guides you through common tasks.
• Import settings from a reference device – Capture the exact configuration of a well-tuned PC and replicate it elsewhere.
• Support for multiple Windows editions – Works with Windows 10, 11, Windows IoT, and even Windows Server in some scenarios.
• Built-in security and compliance options – Enforce BitLocker, firewall rules, and more.

Target users are IT administrators, system integrators, and tech-savvy power users who need to deploy or reconfigure multiple Windows devices efficiently. If you've ever set up a new PC for a family member, you might find it useful too, but it's primarily designed for the enterprise and SMB crowd.

A Wizard for the Weary Admin – The Core Experience

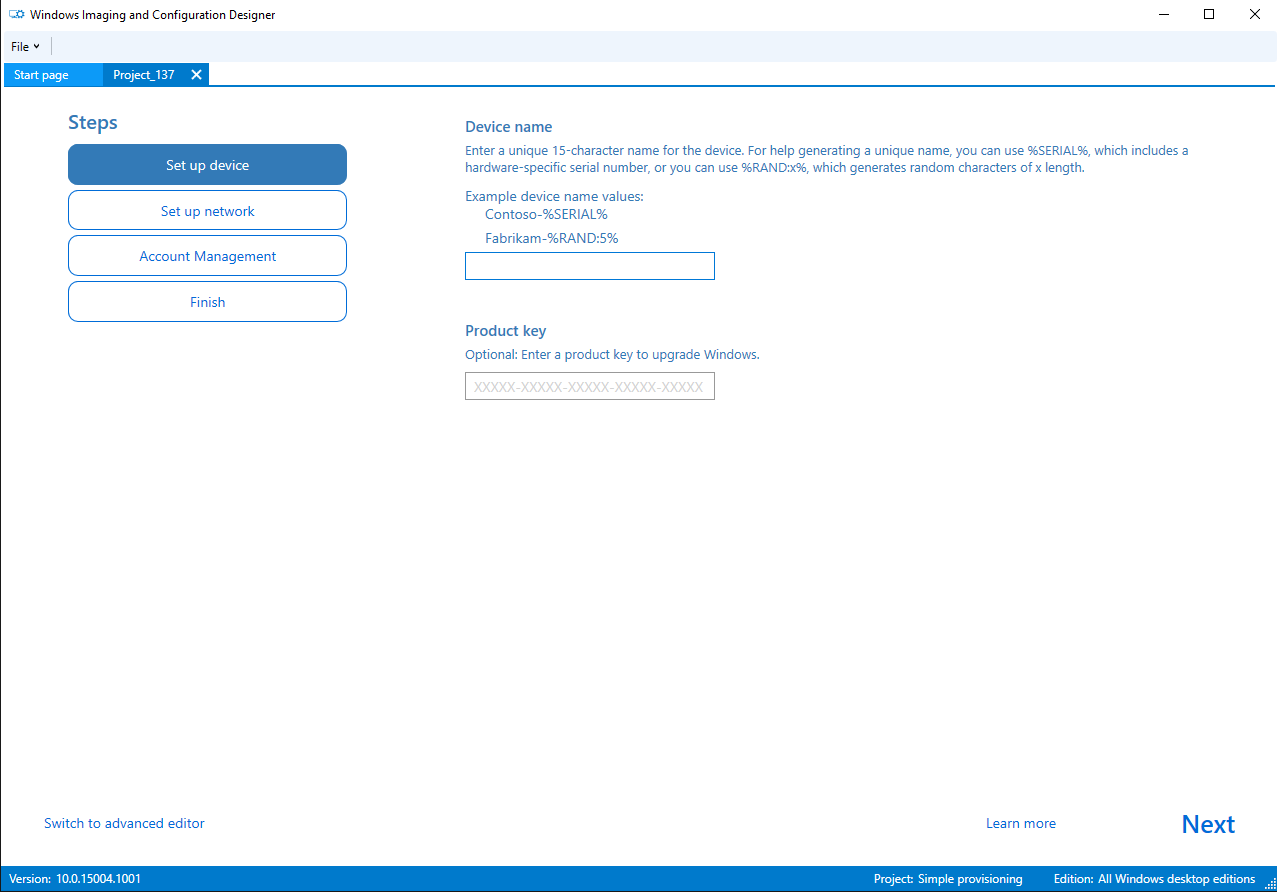

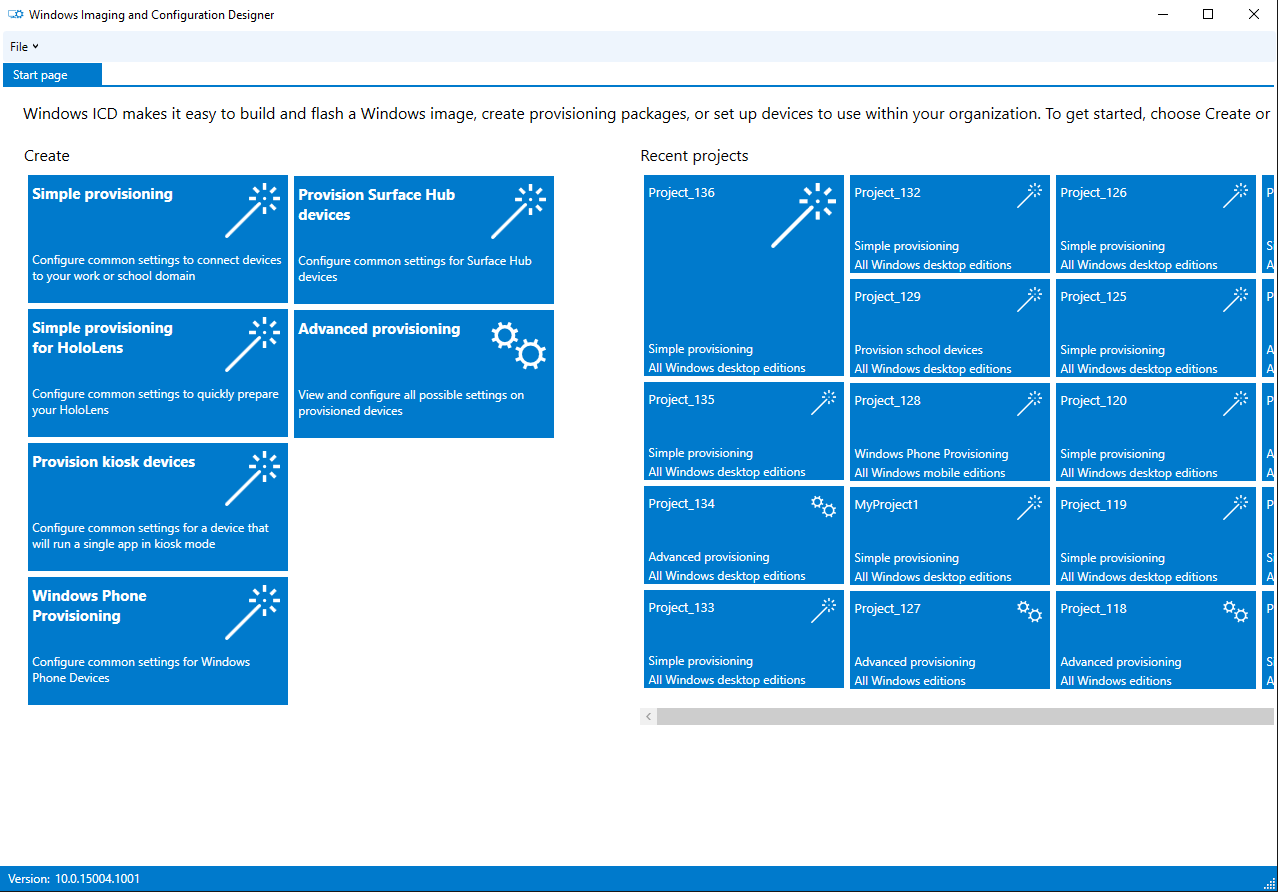

When you launch WCD, you're greeted by a clean, step-by-step wizard. You choose a project type: simple configuration (for basic settings like Wi-Fi and domain join), advanced (with scripting and bulk actions), or a Windows IoT project. Each step asks you to input details—user accounts, network profiles, certificate imports—and the interface is surprisingly modern for a Microsoft utility that isn't part of the Settings app. Buttons are clear, fields are labeled, and previews let you see the XML that will be generated. It's like having a patient assistant who asks you one question at a time, never rushing.

The Standout Feature: Provisioning Packages That Just Work

The most special trick up WCD's sleeve is the ability to export a provisioning package from an existing device. Set up one PC exactly how you want it—with its apps, settings, and configurations—then run WCD on that machine, click "Import from a reference device," and boom: a package that mirrors that setup is created. This is gold for organizations with strict image requirements but no formal imaging system. No need to script every registry tweak; just configure one device and clone the intelligence. Similarly, you can embed PowerShell scripts inside the package for post-deployment tasks, like mapping network drives or installing software from an internal server.

User Experience: Smooth Sailing or Bumpy Road?

For a utility designed for IT pros, WCD's interface is approachable. The learning curve is moderate—if you understand Windows networking and Active Directory basics, you can create a package in under 10 minutes. Operations are snappy; generating a package takes a few seconds, and applying it to a target device via a USB stick or email attachment is almost instant. However, the tool's advanced mode (where you can directly edit the underlying .ppkg file's XML) can be intimidating. The documentation is decent but not always beginner-friendly. Still, compared to alternatives like MDT (which requires a server setup) or DISM (command-line only), WCD is refreshingly simple for one-off or small-scale deployments.

The Power Behind the Curtain: Advanced Customizations

Don't let the wizard fool you—WCD hides serious power. Under "Advanced Provisioning," you can add custom OMA-URI settings (for mobile device management scenarios), configure Windows Updates policies, and deploy certificates. One particularly useful twist is the ability to create packages that are "runtime" based, meaning they can be applied to already-set-up machines without wiping them. This is fantastic for rolling out a security update or a new printer connection across a fleet. The tool also supports creating "supplemental" packages that add to an existing configuration rather than replacing it, which is a lifesaver when you need to patch a group of devices without redoing everything.

Unique Edge Over Other Utilities

Compared to tools like Group Policy Management Console (which requires a domain) or SCCM (which needs heavy infrastructure), Windows Configuration Designer is lightweight and portable. You can run it from a USB stick on a temporary laptop. Its biggest competitor is perhaps MDT (Microsoft Deployment Toolkit), but MDT is overkill when you're deploying fewer than 50 devices. WCD sits perfectly in that gap: it's not an enterprise deployment system, but it's far more capable than manual configuration. The ability to package everything into a single file—no servers, no network dependencies—makes it ideal for small businesses or remote offices without IT staff.

Final Verdict: Who Should Grab This Tool?

I'd recommend Windows Configuration Designer to any IT admin who regularly sets up new PCs or needs to push consistent settings to a handful of devices at a time. It's also a hidden gem for IT consultants who visit multiple client sites. For home users? Not really—there are simpler tools for changing a wallpaper. But if you find yourself repeating the same clicks across three or more computers, give this a try. It won't replace a full-scale deployment solution like Intune or SCCM, but for quick wins and ad-hoc configurations, it's a reliable, free, and surprisingly polished sidekick. Keep it in your toolkit; you'll be glad you did when a last-minute order of 20 laptops arrives at your desk.

FAQ

What is Windows Configuration Designer and who should use it?

Windows Configuration Designer is a free utility from Microsoft for IT pros to configure Windows devices without imaging. It's ideal for creating provisioning packages to automate domain join, Wi-Fi, app installs, and more, targeting organizations managing multiple devices.

How do I install Windows Configuration Designer on my PC?

You can install it from the Microsoft Store by searching 'Windows Configuration Designer' or download it from the Windows Assessment and Deployment Kit (ADK). Ensure you're on Windows 10 or later. No license key is required.

Can I create a provisioning package without administrator privileges?

No, you need local admin rights on the device where you run Windows Configuration Designer. For applying the package to target devices, permissions depend on settings—domain join requires domain credentials, but Wi-Fi configs can be applied by standard users.

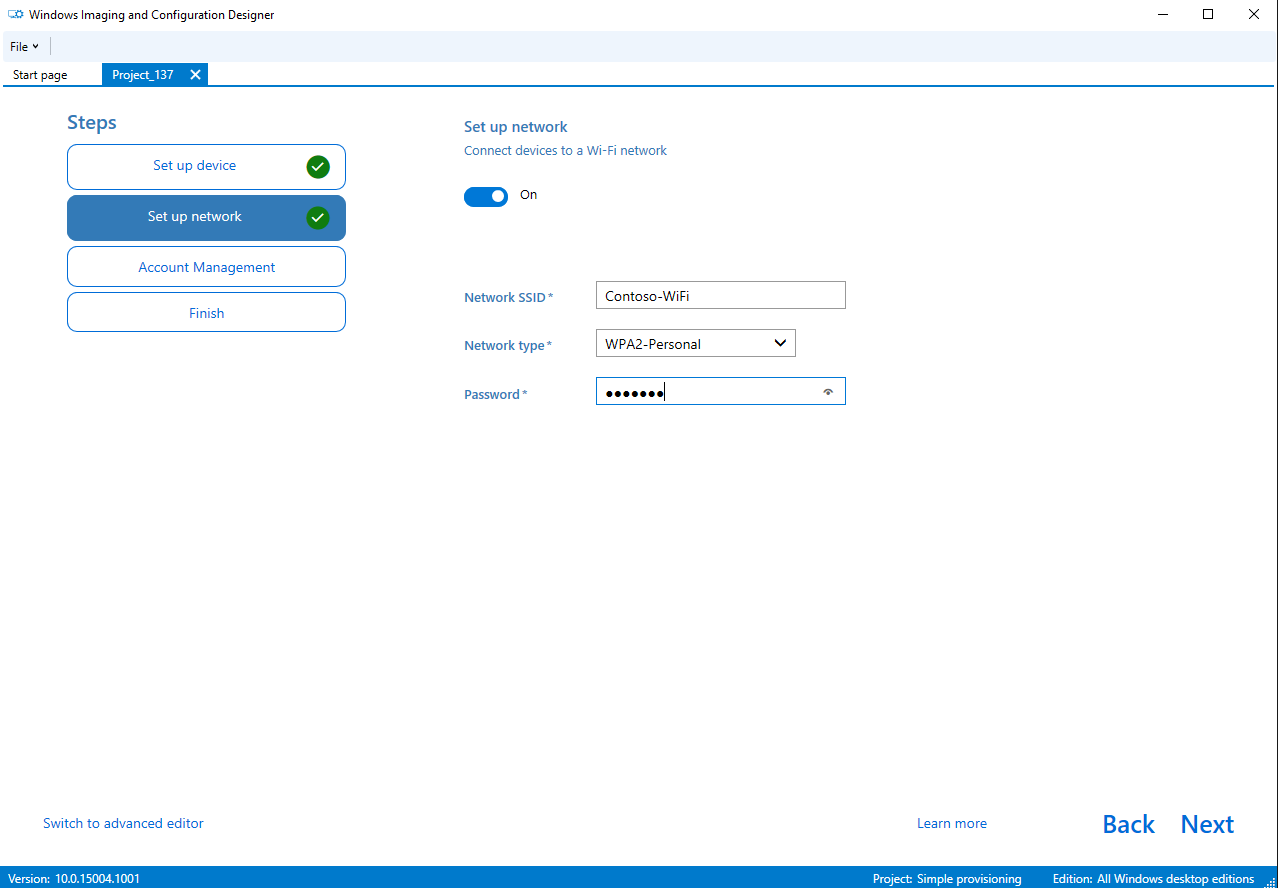

How do I set up automatic Wi-Fi configuration for multiple devices?

Open WCD, choose 'Provisioning package', select 'Common settings' > 'Connectivity' > 'Wi-Fi'. Enter SSID, security type, and password. Generate the package and deploy via USB or network. Each device will auto-connect after applying the package.

Can I deploy apps like Microsoft 365 using Windows Configuration Designer?

Yes. Under 'Provisioning package' > 'Common settings' > 'Applications', you can add offline app installers (.msi, .exe, or .appx). For Microsoft 365, download the Office Deployment Tool first, then include the generated .xml in the provisioning package.

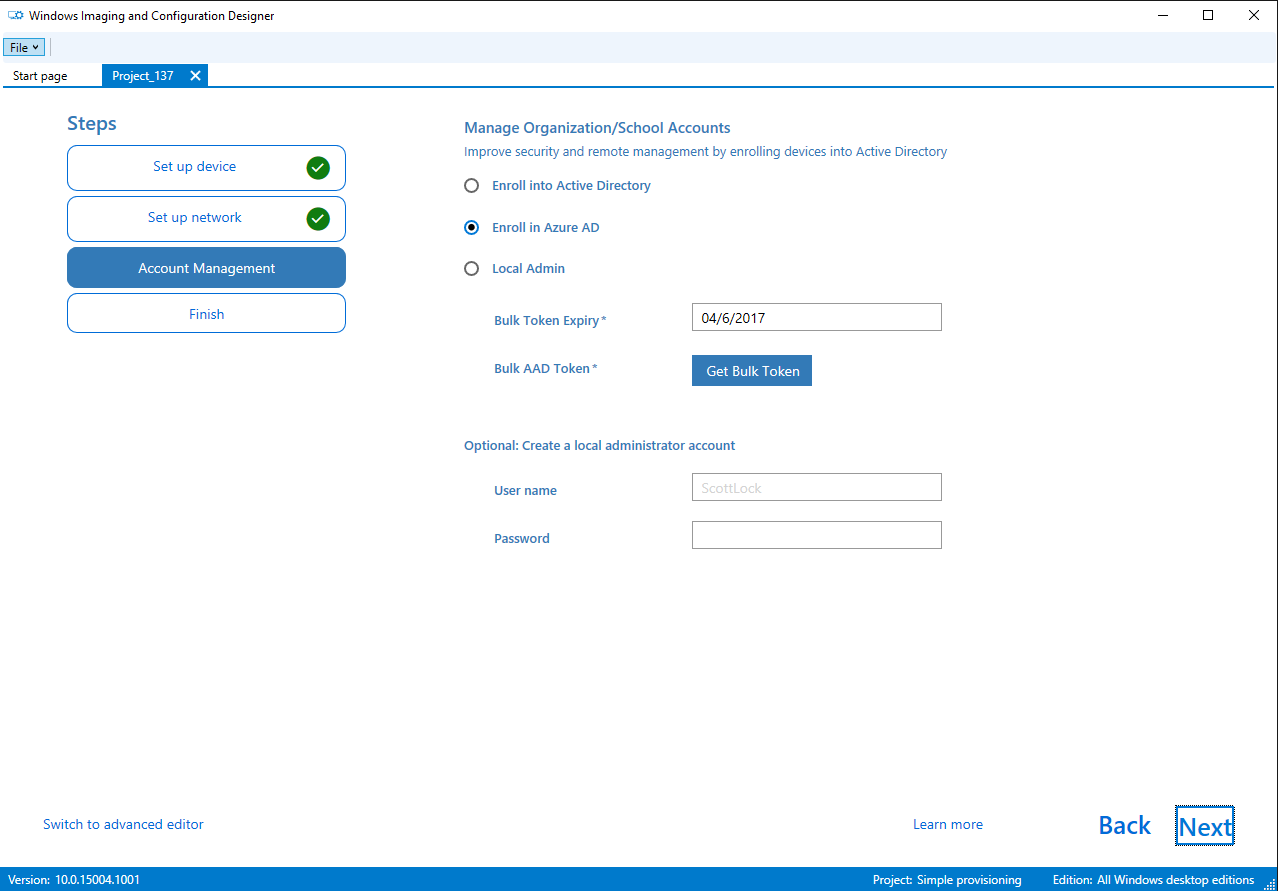

How does Windows Configuration Designer handle Azure AD or AD domain join?

In 'Common settings' > 'Accounts' > 'DomainJoin', choose 'Azure AD Join' or 'Active Directory Join'. Provide tenant details or domain credentials. The provisioning package will automatically join devices to the specified directory during setup.
